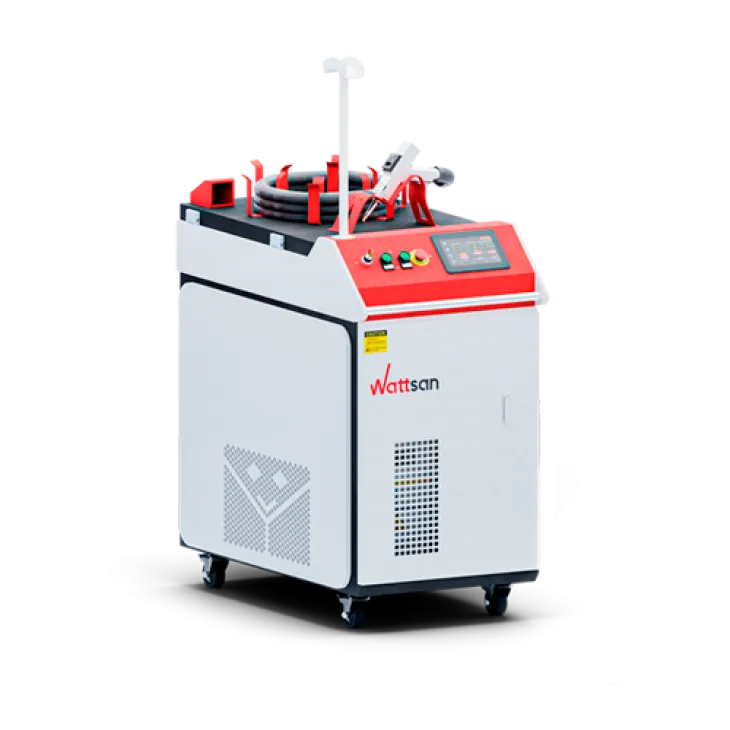

Laser power: 2000 W Machine size: 1560x750x1450 mm Laser source: Raycus, JPT Weight: 280 kg
Welding head weight — 1 kg Fiber length — 10 m Weight — 280 kg Machine size — 1560x750x1450 mm
Cooling — water Scan length range — 80 mm Operating temperature range — 5-40 ℃ Laser power — 1 000 W Laser frequency — up to 20 kHz Operating mode — CW/Mod Weld depth — 5 Operating humidity range — 30-70 % Laser source — Raycus/JPT Laser wavelength — 1080 nm
Welding head — Au3tech HWS5000L Focal length — 150/600 mm Collimator focal length — 50 mm Protective lens — 20x3 Electric power supply — 380 V Control system — Au3tech HW970
Welding gun functions
User-friendly interface for creating quality welds. The wide range of settings makes all types of welding patterns accessible even to the novice user. It takes about one day to learn how to operate and maintain the machine! The touch panel is dust-proof and remains operable under all circumstances.
The machine is equipped with a high quality RECI fibre laser emitter however, other brands are also available: IPG, Raycus, and JPT. The service life of a fibre laser emitter is more than 100,000 hours. The choice of source depends on the customer's wishes and required tasks. To weld large thicknesses including double-sided welding, IPG and Reci laser sources are preferred while any of the above brands can be used to weld thin metals.
The machine software allows you to change the joint thickness and welding patterns: circular, square, C-pattern, V-pattern, figure 8, etc. For ease of use, an additional display on the handpiece shows the current settings.
At Virmer, we advise you, before and after the purchase on the machines and the best ways to use them
The equipment undergoes a 3-stage quality check, first at the manufacturer's factory in China, then when it arrives at the warehouse in the Netherlands, and finally before it is shipped by the transport company to your business
Showroom and Demo
We welcome you to our showroom in the Netherlands to test our brand-new machines on your samples.
We also offer you online demo: send us your samples, we process them and return them to you. We can also make a videocall to show you how our machine works without you leaving your workshop
