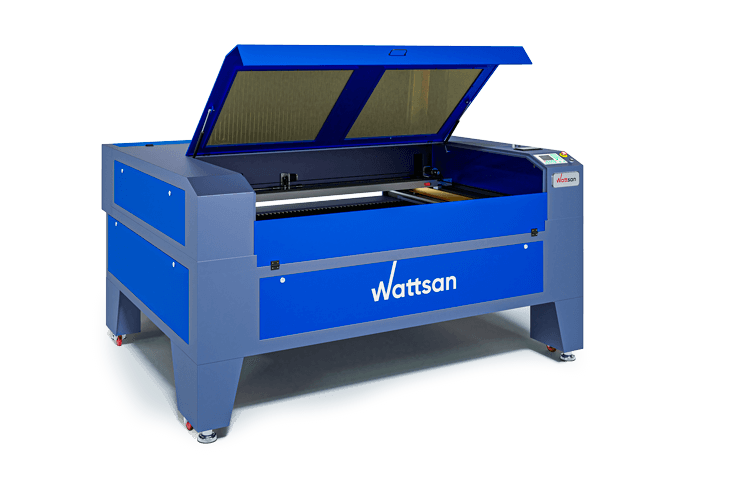

Laser machine Wattsan NC-C1612
€
€
Working area — 1600 * 1200 mm
Machine size (L * W * H) — 2500 mm * 2000 mm * 1320 mm
Packing size — 2600 * 2100 * 1400 mm
Weight — 680 kg
Machine size (L * W * H) — 2500 mm * 2000 mm * 1320 mm
Packing size — 2600 * 2100 * 1400 mm
Weight — 680 kg
Laser power — 130-160 W
Engraving depth — 3 mm
Max. cutting thickness (wood) — 10-13 mm *options
Diameter of mirrors — 25 mm
ZnSe lens — o20 f-50
Focal length — 50 mm *options
Laser tube life — 10000 h
Engraving depth — 3 mm
Max. cutting thickness (wood) — 10-13 mm *options
Diameter of mirrors — 25 mm
ZnSe lens — o20 f-50
Focal length — 50 mm *options
Laser tube life — 10000 h
Table model — Lamels
Lifting table — Yes
Lowering depth of the work table — 160 mm
Control system — Ruida RDC 6432M
Cutting speed — 0-100 mm/s
Engraving speed — 0-1000 mm/s
Cooling — Water
Electric power supply — 220V
Power consumption — 2800 W
Through table — Yes (Y-axis)
Y-axis structure — Roller metal, metal rollers
X-axis structure — Roller metal, metal rollers
Engine on X — 57-H350C / SH
Engine Y — 57-H350C / SH
Engine for the second head — 57-H350B
Lifting table — Yes
Lowering depth of the work table — 160 mm
Control system — Ruida RDC 6432M
Cutting speed — 0-100 mm/s
Engraving speed — 0-1000 mm/s
Cooling — Water
Electric power supply — 220V
Power consumption — 2800 W
Through table — Yes (Y-axis)
Y-axis structure — Roller metal, metal rollers
X-axis structure — Roller metal, metal rollers
Engine on X — 57-H350C / SH
Engine Y — 57-H350C / SH
Engine for the second head — 57-H350B
Frame design
Reinforced gantry
Stepper motors and belt gearboxes
Three-phase type stepper motors and a belt-driven gearbox (4:1) ensure the highest level of engraving quality and precision. This is due to the reduced load by splitting the number of steps
Helps to avoid inertial vibrations when processing material at high speeds. Thanks to the reinforced gantry, undercuts and other undesirable results are avoided
The frame design is one of the main advantages of Wattsan machines. Robust and sturdy material and heat pre-treatment maximise the service life of the machine. The vibration-absorbing frame allows almost all types of material to be machined at high speeds
Waste collection compartment
Protects against the ingress of production waste into the lifting mechanism, extends the service life of the machine, and provides additional rigidity
Anodized blades
Anodized blades eliminate the reflection of the laser beam on the reverse side of the processed material. This coating also increases the wear resistance of the worktable
Universal mounting
The universal mounts make alignment easy. Such mounts allow you to install a laser tube of various diameters and sizes, as well as adjust the optics vertically and horizontally
Table lowering chain
For processing heavy materials such as stone, the Wattsan LT series machines are equipped with a chain and asynchronous motor, which can lift materials weighing up to 80 kg
