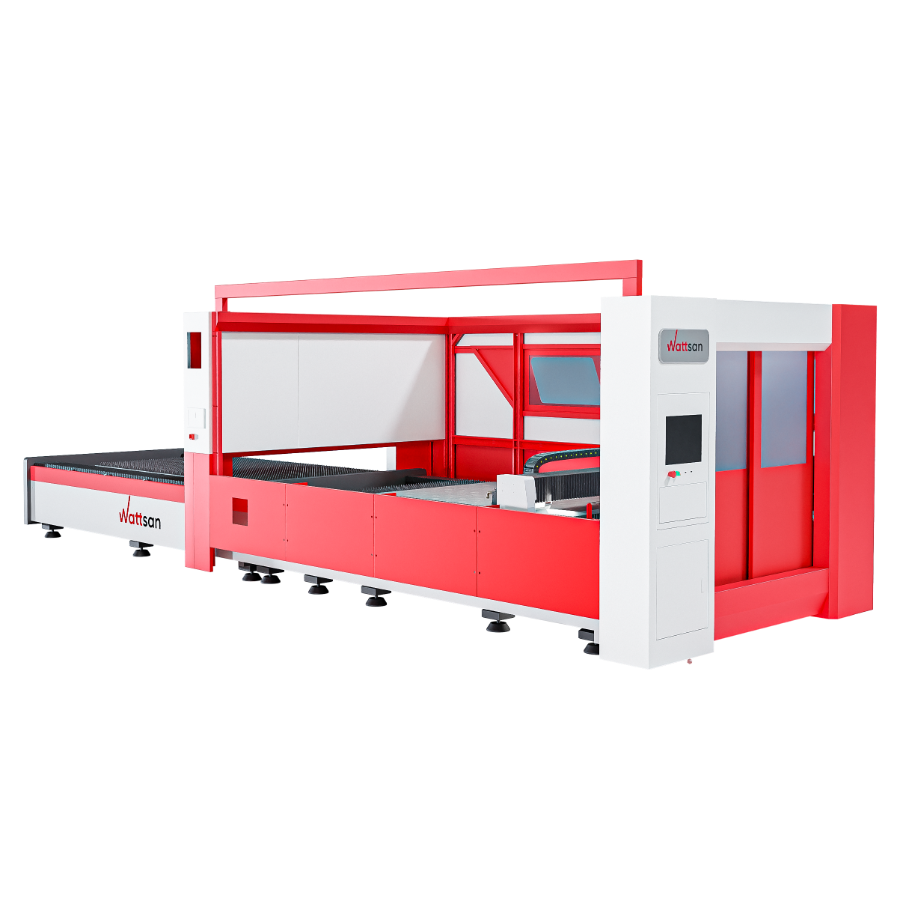

Working area — 1500x3000 mm
Machine size (L * W * H) — 8500 х 2580 х 2200 mm
Packing size — 10000x3300x1800 mm
Weight — 4000 kg
Machine size (L * W * H) — 8500 х 2580 х 2200 mm
Packing size — 10000x3300x1800 mm
Weight — 4000 kg
Laser head — Raytools/Precitec/WSX
Laser power — up to 6 kW
Laser power — up to 6 kW
Engine power Z — 400 W
Engine power XY — 1500 W*2+1000W
Gearboxes — Nidec-Shimpo
Structure of XY axis — Guides HIWIN / Helical rack LEAN / Leitesen
Structure of Z axis — HIWIN Guides / Ball Screws
Height sensor — Automatic capacitive
Lubrication system — Automatic centralized, semi-automatic
Max. travel speed — 100/120 m/min
Max. working speed — Depends on the material
Additional gas — Oxygen, nitrogen, air, argon
Auto change table — Yes
Engine power XY — 1500 W*2+1000W
Gearboxes — Nidec-Shimpo
Structure of XY axis — Guides HIWIN / Helical rack LEAN / Leitesen
Structure of Z axis — HIWIN Guides / Ball Screws
Height sensor — Automatic capacitive
Lubrication system — Automatic centralized, semi-automatic
Max. travel speed — 100/120 m/min
Max. working speed — Depends on the material
Additional gas — Oxygen, nitrogen, air, argon
Auto change table — Yes
Software — 2000C
Power electrics — Schneider
Repositioning accuracy — ±0.02 mm
Height control system — BCS100
Type of end sensors — Inductive
Working temperature — 10-40 °C
Type of emitter — Raycus / MAX Photonics / IPG
Laser power adjustment — % 10-100
Power electrics — Schneider
Repositioning accuracy — ±0.02 mm
Height control system — BCS100
Type of end sensors — Inductive
Working temperature — 10-40 °C
Type of emitter — Raycus / MAX Photonics / IPG
Laser power adjustment — % 10-100
Interchangeable table system
The possibility to change work areas saves a considerable amount of time in preparing the material for machining and therefore increases productivity. While cutting sheets on one of the tables, the operator can collect the finished elements on the other.
Protective cabin
For high-powered metal cutters, there is a protective cabine, in which the operator is located. This solution eliminates the risks of radiation hazardous to humans and industrial accidents
Gantry
Servomotors and planetary gearboxes
Laser head
Guide rails/ Ball-and-screw
Laser sources
Frame
The machine is equipped with reliable HIWIN guide rails. A high-speed ball-and-screw is essential for tracking the curvature of the metal
The machines are equipped with Mitsubishi servomotors and Shimpo planetary gears. The quality of these brands is undisputed and the components ensure precise machining at high speeds without overheating
Wattsan cooperates with four of the world's leading laser sources manufacturers: IPG, Raycus, Max Photonics, JPT
The material and dimensions of the frame structure depend on the type of machine. All frames are subjected to mandatory stress relieving heat treatment. The assembly is performed by robotic systems. This guarantees the reliability and accuracy of the equipment
Maximum machining quality can only be achieved with quality laser heads. This is why Wattsan works with the leading
manufacturers: Raytools, Precitec, WSX
manufacturers: Raytools, Precitec, WSX
The material, dimensions, and weight of the gantry depend on the type of material to be processed. The machine can be modified according to the customer's needs
Control system
The modern control system has a wide range of functions and is compatible with CAD and CAM software. The ease of use makes the machine comfortable and comprehensible even for beginners
Cooling system
A chiller is essential for processing materials that require high power. The system maintains the required operating temperature of the laser head and source, preventing them from overheating. Wattsan machines are equipped with chillers from one of the world's best brands, S&A
Smoke extraction system
Automatic pneumatic dampers do an excellent job of removing smoke and cleaning the area above the laser head.
