Working area — 1600*1600 mm
Machine size (L * W * H) — 2700*4540*1780 mm
Weight — 1050 kg
Machine size (L * W * H) — 2700*4540*1780 mm
Weight — 1050 kg
Tool lifting height (Z-axis travel) — 300 mm
Table type — profile/vacuum
Number of vacuum zones — 6
Working temperature — 5 - 40 С°
Idle speed — 25 000 mm/min
Movement mechanism — helical rack
Positional accuracy — 0,05 mm
Positional resolution — 0,00625 mm
Linear motion guide system — profile
Dimension of the guides — 20 mm
Engine power — 5A 6.8N
Gearboxes — Newgear PFL-90-5-P2, 1:5
Spindle RPM — 18 000 rpm
Spindle — 6 kW
Collet chuck — Er-32
Vacuum pump power — 5,5 kW- 2 pcs
Aspiration power — 2300 m3/h
Table type — profile/vacuum
Number of vacuum zones — 6
Working temperature — 5 - 40 С°
Idle speed — 25 000 mm/min
Movement mechanism — helical rack
Positional accuracy — 0,05 mm
Positional resolution — 0,00625 mm
Linear motion guide system — profile
Dimension of the guides — 20 mm
Engine power — 5A 6.8N
Gearboxes — Newgear PFL-90-5-P2, 1:5
Spindle RPM — 18 000 rpm
Spindle — 6 kW
Collet chuck — Er-32
Vacuum pump power — 5,5 kW- 2 pcs
Aspiration power — 2300 m3/h
Bed type — welded, steel
Material of production — steel, cast iron, aluminium
Material of portal — steel
Number of axis movements — 3
Lubrication system — manual
Control system — DSP A11
File format — G-code
Material of production — steel, cast iron, aluminium
Material of portal — steel
Number of axis movements — 3
Lubrication system — manual
Control system — DSP A11
File format — G-code
Motor drivers — Leadshine dma860h
End sensors — capacitive
Power consumption (without vacuum pump) — 7300 kW
Electric power supply — 380 V
Power electrics — Chint
Connection type to the machine — USB
Speed control — software and manual
Portal equalization system — yes
End sensors — capacitive
Power consumption (without vacuum pump) — 7300 kW
Electric power supply — 380 V
Power electrics — Chint
Connection type to the machine — USB
Speed control — software and manual
Portal equalization system — yes
Gantry
Servomotors and planetary gearboxes
Laser head
Guide rails/ Ball-and-screw
Laser sources
Frame
The machine is equipped with reliable HIWIN guide rails. A high-speed ball-and-screw is essential for tracking the curvature of the metal
The machines are equipped with Mitsubishi servomotors and Shimpo planetary gears. The quality of these brands is undisputed and the components ensure precise machining at high speeds without overheating
Wattsan cooperates with four of the world's leading laser sources manufacturers: IPG, Raycus, Max Photonics, JPT
The material and dimensions of the frame structure depend on the type of machine. All frames are subjected to mandatory stress relieving heat treatment. The assembly is performed by robotic systems. This guarantees the reliability and accuracy of the equipment
Maximum machining quality can only be achieved with quality laser heads. This is why Wattsan works with the leading
manufacturers: Raytools, Precitec, WSX
manufacturers: Raytools, Precitec, WSX
The material, dimensions, and weight of the gantry depend on the type of material to be processed. The machine can be modified according to the customer's needs
Planetary gearboxes
Shimpo Nidec has a high level of fault tolerance and is able to cope with high loads
Control system
The modern control system has a wide range of functions and is compatible with CAD and CAM software. The ease of use makes the machine comfortable and comprehensible even for beginners
Cooling system
A chiller is essential for processing materials that require high power. The system maintains the required operating temperature of the laser head and source, preventing them from overheating. Wattsan machines are equipped with chillers from one of the world's best brands, S&A
Smoke extraction system
Automatic pneumatic dampers do an excellent job of removing smoke and cleaning the area above the laser head.

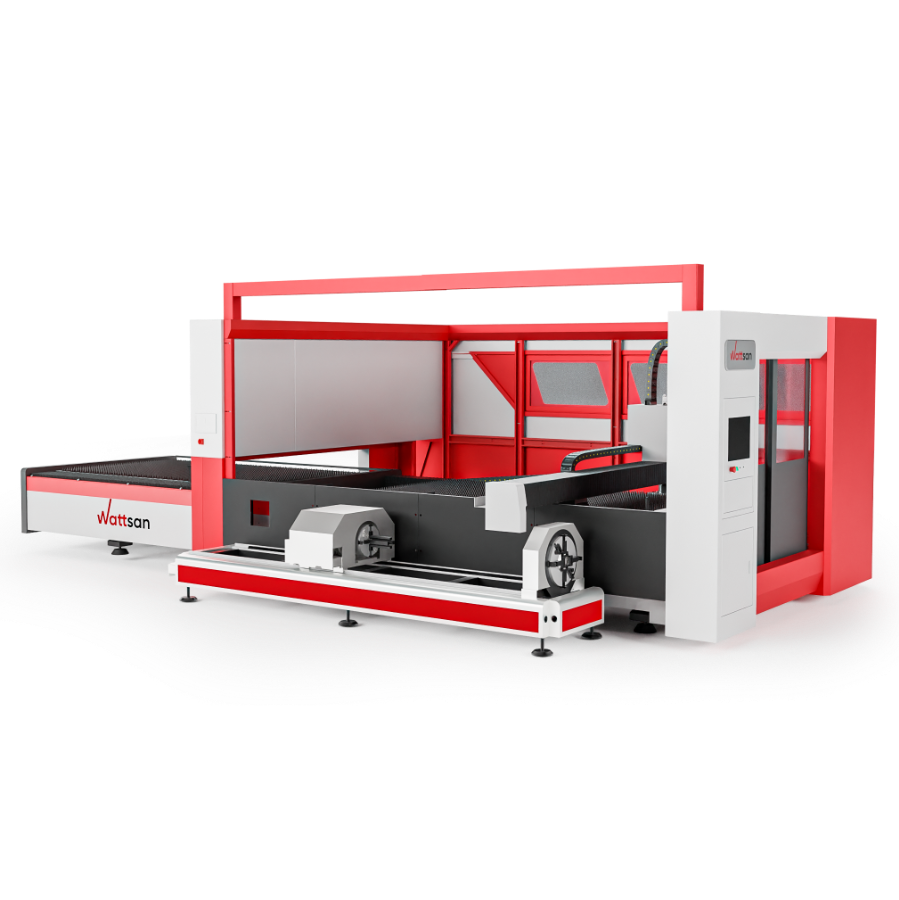

Pipe cutting module
The machine has a pipe cutting module integrated with the worktable. The working area accommodates a sheet of 1500x3000 mm, and the cutting module is designed for square (10-140 mm) and round (10-220 mm) pipes
Protective cabin
For high-powered metal cutters, there is a protective cabine, in which the operator is located. This solution eliminates the risks of radiation hazardous to humans and industrial accidents
