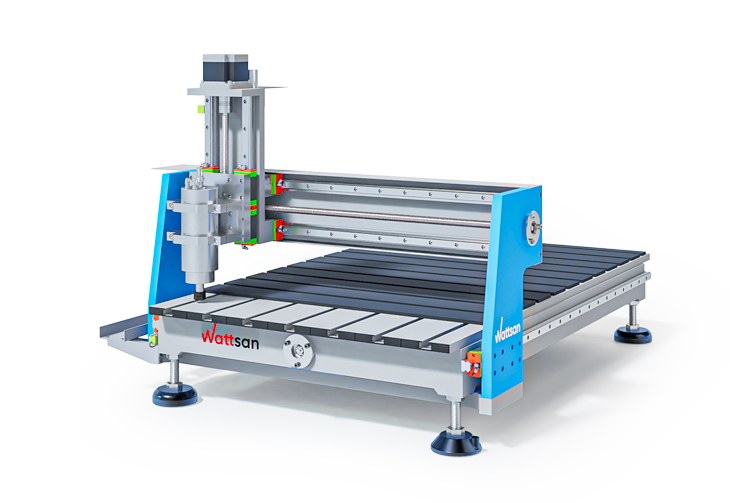

CNC Router Machine WATTSAN 0609 mini
Bench-type machine for small-scale production lifting manual table
€
4549
€
Working area — 600*900 mm
Machine size (L * W * H) — 915*1210*740 mm
Weight — 140 kg
Machine size (L * W * H) — 915*1210*740 mm
Weight — 140 kg
Tool lifting height (Z-axis travel) — 100 mm
Table type — profile
Working temperature — 5 - 40 С°
Idle speed — 7 000 mm/min
Movement mechanism — ball-and-screw unit
Positional accuracy — 0,02 mm
Positional resolution — 0,0025 mm
Linear motion guide system — profile
Dimension of the guides — 20 mm
Engine power — 4A 5N.m
Gearboxes — no
Spindle RPM — 24 000 rpm
Spindle — 1,5 kW
Collet chuck — Er-11
Aspiration power — 900 m3/h
Table type — profile
Working temperature — 5 - 40 С°
Idle speed — 7 000 mm/min
Movement mechanism — ball-and-screw unit
Positional accuracy — 0,02 mm
Positional resolution — 0,0025 mm
Linear motion guide system — profile
Dimension of the guides — 20 mm
Engine power — 4A 5N.m
Gearboxes — no
Spindle RPM — 24 000 rpm
Spindle — 1,5 kW
Collet chuck — Er-11
Aspiration power — 900 m3/h
Bed type — cast iron
Material of production — cast iron, aluminium
Material of portal — aluminium
Number of axis movements — 3
Lubrication system — manual
Control system — NCStudio
File format — G-code
Material of production — cast iron, aluminium
Material of portal — aluminium
Number of axis movements — 3
Lubrication system — manual
Control system — NCStudio
File format — G-code
Motor drivers — Leadshine DM542-05
End sensors — capacitive
Power consumption (without vacuum pump) — 2300 kW
Electric power supply — 220 V
Power electrics — Chint
Connection type to the machine — D-SUB DA-15
Speed control — software and manual
Portal equalization system — no
End sensors — capacitive
Power consumption (without vacuum pump) — 2300 kW
Electric power supply — 220 V
Power electrics — Chint
Connection type to the machine — D-SUB DA-15
Speed control — software and manual
Portal equalization system — no
Stepper motors
Guide rails and helical racks
Ball-and-screw on the Z axis
These machine elements are manufactured by leading brands and fastened into robotically milled recesses
This solution enables the machines to be equipped with high-powered spindles. Accordingly, these milling machines are versatile for various types and scales of production
Wattsan machines are equipped with stepper motors that have been inspected and tested. Extensive experience, compliance with standards, and thousands of positive customer references worldwide enable the brand to produce reliable elements at an affordable cost
Made on Wattsan's CNC Router machines
About us
At Virmer, we advise you, before and after the purchase on the machines and the best ways to use them
Customer support
Delivery guarantee
The equipment undergoes a 3-stage quality check, first at the manufacturer's factory in China, then when it arrives at the warehouse in the Netherlands, and finally before it is shipped by the transport company to your business
Showroom and Demo
We welcome you to our showroom in the Netherlands to test our brand-new machines on your samples.
We also offer you online demo: send us your samples, we process them and return them to you. We can also make a videocall to show you how our machine works without you leaving your workshop
Eisenhouwerweg 5F, 5466 AB, Veghel the Netherlands
+31 85 273 1786
info@virmer.com
We also offer you online demo: send us your samples, we process them and return them to you. We can also make a videocall to show you how our machine works without you leaving your workshop
Eisenhouwerweg 5F, 5466 AB, Veghel the Netherlands
+31 85 273 1786
info@virmer.com
Warranty
Our equipment is under warranty for 24 months and can be extended up to 60 months
Wattsan machines are equipped with the most reliable and common components in the world
