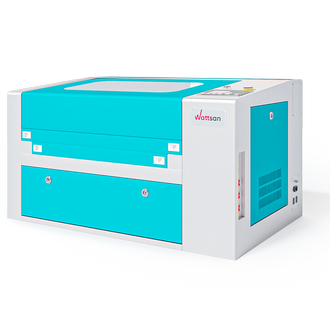

Laser machine WATTSAN 0503
Bench-type machine for small-scale production lifting manual table
€
4139
€
Working area — 500 * 300 mm
Machine size (L * W * H) — 650 mm * 1040 mm * 575 mm
Packing size — 765 * 1140 * 710 mm
Weight — 104 kg
Machine size (L * W * H) — 650 mm * 1040 mm * 575 mm
Packing size — 765 * 1140 * 710 mm
Weight — 104 kg
Laser power — 50W
Laser tube life — 7000 h
Max. cutting thickness (wood) — 5-6 mm
Diameter of mirrors — 25 mm
ZnSe lens — 18 mm
Focal length — 38 mm*
Laser tube life — 7000 h
Max. cutting thickness (wood) — 5-6 mm
Diameter of mirrors — 25 mm
ZnSe lens — 18 mm
Focal length — 38 mm*
Table model — Lamels/honey table
Lifting table — Yes, manual
Lowering depth of the work table — 200 mm
Control system — Ruida RDC 6445G
Cutting speed — 0-500 mm/s*
Engraving speed — 0-700 mm/s*
Cooling — Water
Electric power supply — 220V
Power consumption — 640
Through table — Yes (Y-axis)
Y-axis structure — Linear guide AMT PMI MSB 15S
X-axis structure — Linear guide AMT PMI MSB 15S
Engine on X — 57-H350B
Engine Y — 57-H350CS / SH (2 shafts)
Lifting table — Yes, manual
Lowering depth of the work table — 200 mm
Control system — Ruida RDC 6445G
Cutting speed — 0-500 mm/s*
Engraving speed — 0-700 mm/s*
Cooling — Water
Electric power supply — 220V
Power consumption — 640
Through table — Yes (Y-axis)
Y-axis structure — Linear guide AMT PMI MSB 15S
X-axis structure — Linear guide AMT PMI MSB 15S
Engine on X — 57-H350B
Engine Y — 57-H350CS / SH (2 shafts)
3M belt
Nozzle and mounting
Frame design
All Wattsan machines come with a durable frame. The frame is heat-treated to ensure that the machines are fail-safe and extremely precise at high speeds
The nozzles supplied in the kit have a wide and narrow cross-section. They can be used for both cutting and engraving. The finished product will be fully protected against defects including fouling after machining
Cogged rubber belts extend the service life of the machine. They ensure smooth running and soften vibrations. This has a positive effect on the quality of material processing. Unlike other types of belts, due to full synchronization and tensioning, the load on the equipment is also minimized
Reinforced gantry
All Wattsan machines are equipped with a reinforced gantry. This allows for high precision machining results at high speeds and also extends the service life of the equipment.
Stepper motors and belt gearboxes
Three-phase type stepper motors and a belt-driven gearbox (4:1) ensure the highest level of engraving quality and precision. This is due to the reduced load by splitting the number of steps
